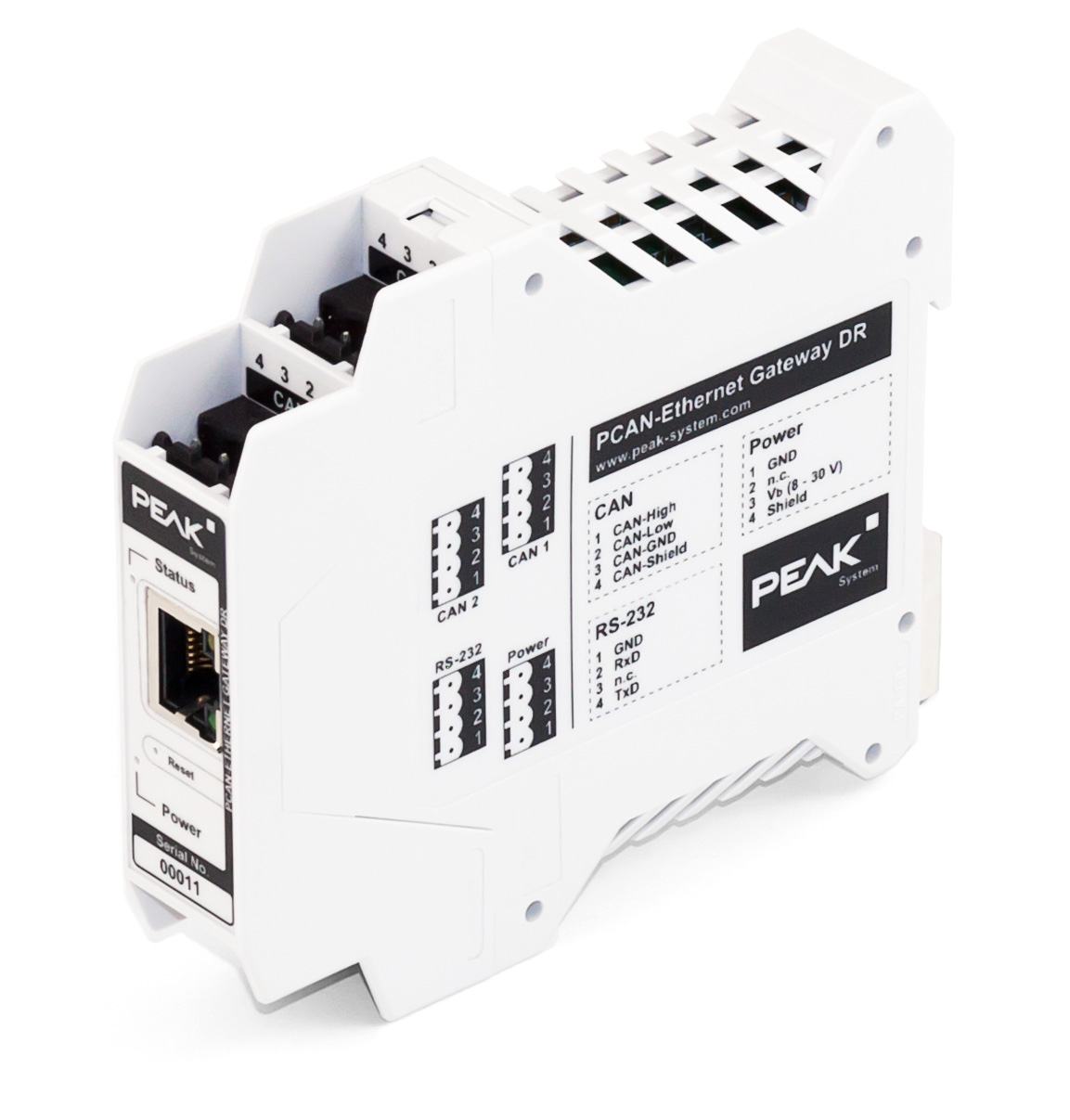

PCAN-Ethernet Gateway DR

Catalog No.: IPEH-004010

Features:

• ARM9 Freescale, Linux (2.6)
• 256 MByte NAND Flash and 64 MByte DDR2 RAM
• One LAN connection and two High-speed CAN interfaces (2.0A/B)
• Connection of different CAN busses (2) over IP networks
• Configuration and settings via web interface
• LAN - Ethernet 10/100 Mbit/s, RJ45
• Operating status indicated by LED
• Plastic enclosure with DIN rail mounting
• Temperature: -40°C – +85°C
