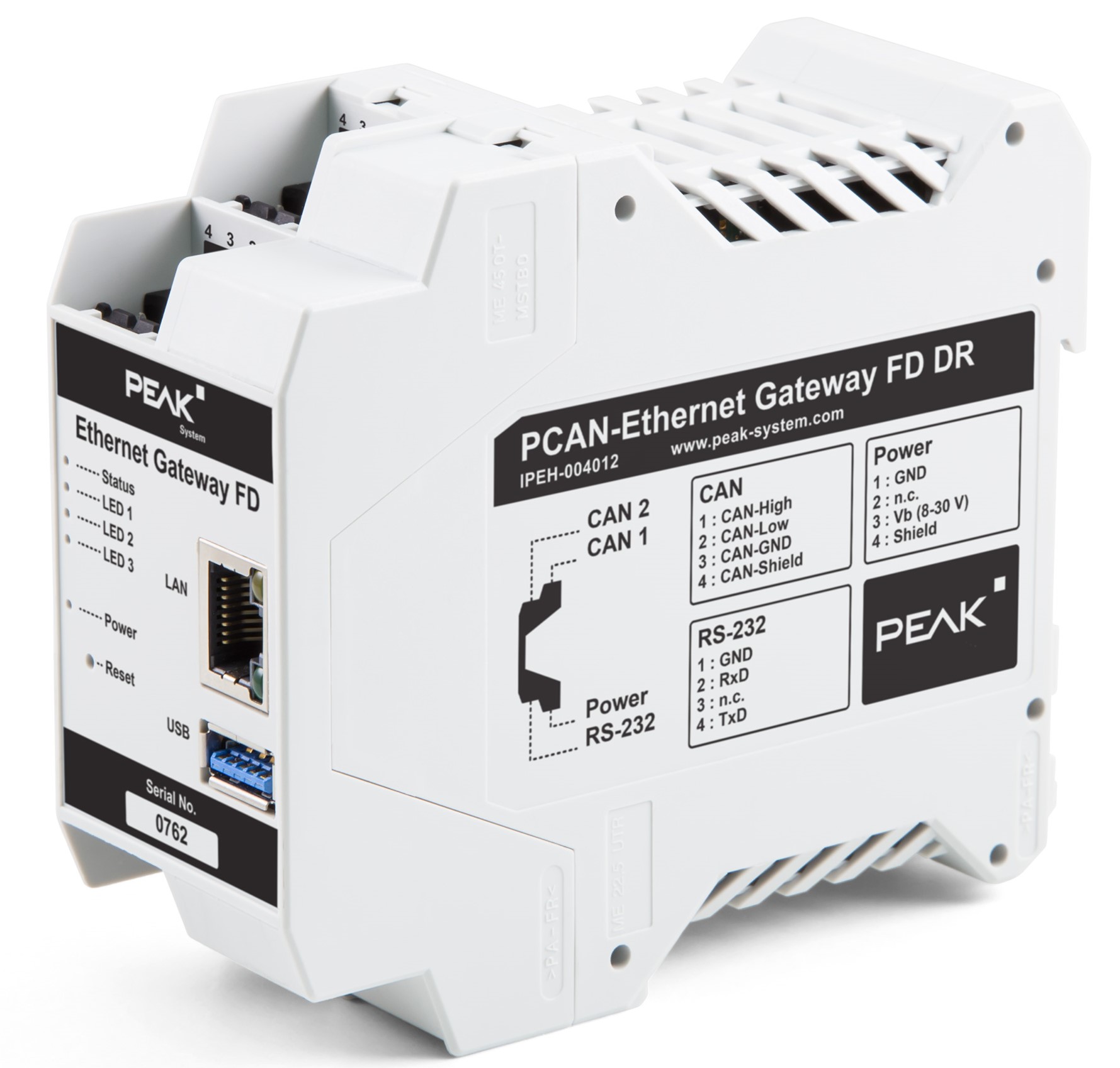

PCAN-Ethernet Gateway FD DR

Catalog No.: IPEH-004012

Features:

CAN to LAN gateway, DIN rail, Ethernet, 2 x CAN FD
• AM5716 Sitara with Arm Cortex M15 core
• 2 GByte Flash and 1 GByte DDR3 RAM
• Linux operating system (version 4.19)
• Two High-speed CAN channels (ISO 11898-2), 2.0 A/B and FD
• CAN FD bit rates for the data field (64 bytes max.) from 20 kbit/s up to 10 Mbit/s
• CAN bit rates from 20 kbit/s up to 1 Mbit/s
• Microchip MCP2558FD CAN transceiver
• Galvanic isolation of the CAN channels up to 500 V against each other, against RS-232, and the power supply
• Connections for CAN and power supply Phoenix screw-terminal
• LAN interface: TCP or UDP, 10/100/1000 Mbit/s
• RJ-45 connector with status LEDs
• Monitoring and configuration of the devices via the web interface or JSON interface
• Software update via the web interface
• Reboot or reset of the device to a previous software version with a reset button
• Plastic casing (width: 45.2 mm) for mounting on a DIN rail (DIN EN 60715 TH35)
• LEDs for device status and power supply
• PCI Express Mini slot, USB port, and a RS-232 connector for future use
• Voltage supply from 8 to 30 V
• Operating temperature range from -40 to 70 °C
• Fan for active cooling when a temperature limit is exceeded
